Slimdrive EMD Invers * Electromechanical swing door system for single leaf smoke and heat extraction fresh air opening systems
- Opening and closing speed can be individually adjusted
- Electrical latching action which accelerates the door shortly before the closed position
- Drive can be used with roller guide rail or link arm
- Inverse function opens the door via spring force and closes it with a motorised function
- Obstacle detection detects an object through contact and stops the opening or closing process
- Automatic reversing detects an obstacle and returns to the opening position
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf
- Freely configurable inputs and outputs for different functions
- Can be networked, and integrated into the building automation via open standard (BACnet)
Application Areas
- Doors along escape and rescue routes
- Single-action, single leaf, right and left closing doors
- Single-action doors up to 1400 mm leaf width or 230 kg weight
- Smoke and heat extraction fresh air opening systems
- Interior and exterior doors with high access frequency
- Door leaf installation and transom installation
Technical data
| Slimdrive EMD Invers | |
| Leaf weight (max.) 1-leaf | 230 kg |
| Leaf width (min.-max.) | 750 mm - 1400 mm |
| Reveal depth (max.) | 400 mm |
| Door overlap (max.) | 50 mm |
| Drive type | Electromechanical |
| Opening angle (max.) | 130 ° |
| DIN left | Yes |
| DIN right | Yes |
| Transom installation opposite hinge side with link arm | Yes |
| Transom installation opposite hinge side with roller guide rail | Yes |
| Transom installation hinge side with roller guide rail | Yes |
| Door leaf installation opposite hinge side with roller guide rail | No |
| Door leaf installation hinge side with roller guide rail | Yes |
| Door leaf installation hinge side with link arm | No |
| Mechanical latching action | No |
| Electrical latching action | Yes |
| Disconnection from mains | Main switch in the drive |
| Activation delay (max.) | 20 s |
| Operating voltage | 230 V |
| Power rating | 230 W |
| Power supply for external consumers (24 V DC) | 1000 mA |
| Service temperature | -15 - 50 °C |
| Air humidity non-condensing (max.) | 95 % |
| IP rating | IP20 |
| Mode of operation | Automatic, Permanently open, Night, Off, Shop closing |
| Automatic function | Yes |
| Low-energy function | Yes |
| Servo function | No |
| Inverse function (opening by spring force) | Yes |
| Obstacle detection | Yes |
| Automatic reversing | Yes |
| Push & Go | adjustable |
| Operation | Programme switch integrated in the drive, Programme switch DPS, MPS programme switch |
| Parameter setting | Service terminal ST 220, Programme switch DPS, GEZEconnects (PC + Bluetooth) |
| Standard conformity | DIN 18650, EN 16005 |

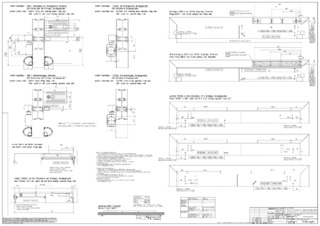

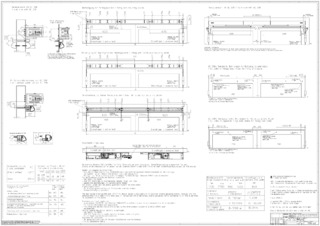

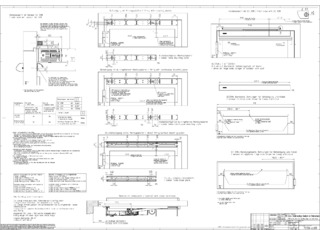

Downloads
