Push button

KFT elbow switch * Plastic elbow switch, IP rating IP20, for activation of automatic doors

Elbow switch Niro Elbow switch Niro
  • IP rating IP20
  • Very flat design with a height of 180 mm
  • Large push switch for activation even with elbows

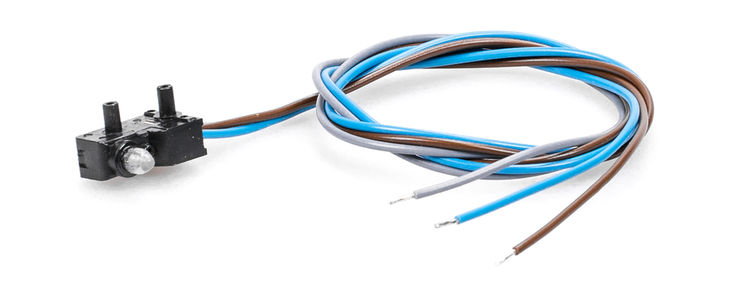

  • Optional expansion with transmitting module

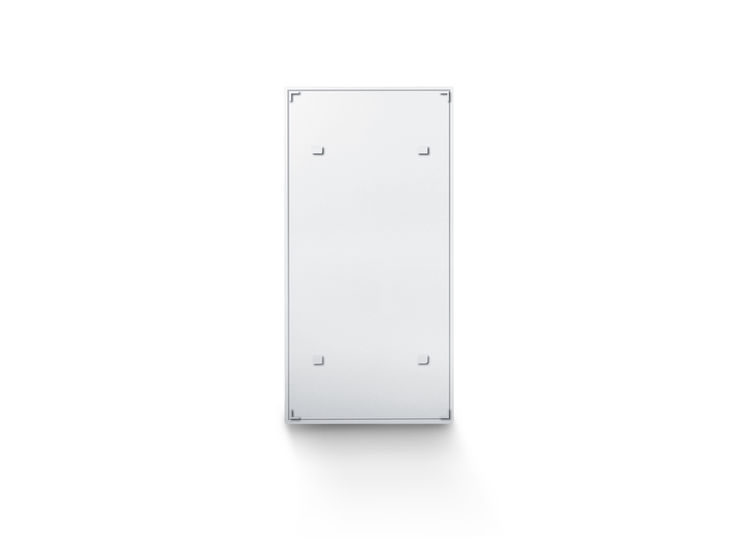

  • Optional back plate for adhering to smooth surfaces like glass
Contact us

Application Areas

  • Activation of automatic swing, sliding, folding, revolving and curved sliding doors
  • Inside
  • Surface-mounted installation

Technical data

KFT elbow switch
Dimensions 90 x 179 x 23 mm
Switching voltage 24 V DC
Switching current 1 A
IP rating IP20
Type of installation Surface-mounted
Material Plastic
Service temperature -20 - 85 °C

Variants & Accessories
