Sensor strips

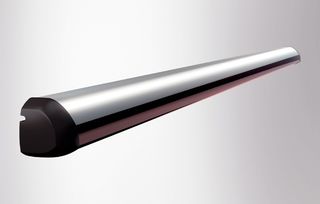

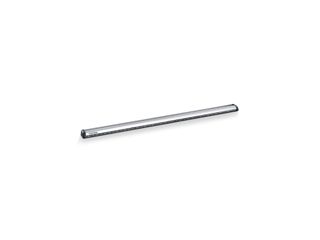

GC 338 * Sensor strip with standby mode for the protection of automatic swing and revolving doors

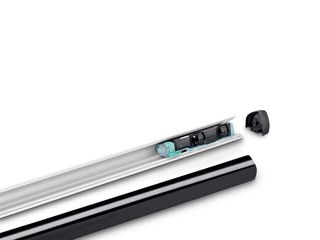

GC GR sensor roller guide rail + GC 338 sensor Sensors and activation device, GC GR sensor roller guide rail for TSA 160 NT and Slimdrive EMD in lengths 1100 mm and 1500 mm
  • Energy and space-saving sensor strip
  • Standby mode provides up to 50 % energy savings and increases the life span of the LED diodes
  • Close-knit detection area secures leaf widths of up to max. 1500 mm
  • Integrated object and wall blanking near maximum door opening
  • Automatized teaching of the system with the push of a button
  • All settings can be conveniently made by DIP switch
Show more
  • Click installation in the sensor cut-out profile reduces installation work
Contact us

Application Areas

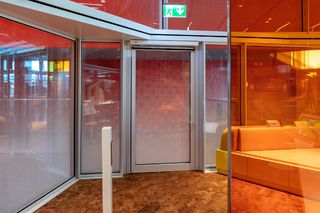

  • Protection of automatic swing and revolving doors
  • Interior and exterior doors
  • Complicated flooring, such as reflective floors, entrance mats, metal rails
  • Narrow door profiles
  • Door widths 600 to 1500 mm
  • Minimum possible length of the sensor strip with 1 transmitter/receiver module each: 51 cm
  • Minimum possible length of the sensor strip with 2 transmitter/receiver modules each: 83 cm

Technical data

GC 338
Technology Active infrared beams
Switching voltage 30 V
Switching capacity max. 100 mA
Operating current 30 mA
IP rating IP54
Connector cable length 5000 mm
Installation height (min.) 1500 mm
Installation height (max.) 3500 mm
Reaction time < 52 ms and < 200 ms in boost mode
Service temperature -30 - 60 °C
Humidity < 90% relative, non-condensing
Standard conformity EN 16005, DIN 18650
