OL 90 N

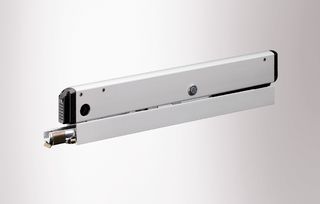

Scissors OL 90 N Scissors OL 90 N with standard leaf bracket

GEZE OL 90 N Schere
  • Achieves the full opening width of 170 mm for all leaf heights
  • Little space necessary thanks to flat design of the scissors
  • Locking in the scissors guarantees a safe leaf locking mechanism
  • Unhinging inhibitor on the scissors offers additional safety
  • Scissor unhooking by pressing the release button facilitates window cleaning from inside and outside
  • Completely pre-mounted assembly groups facilitate installation
Contact us

Application Areas

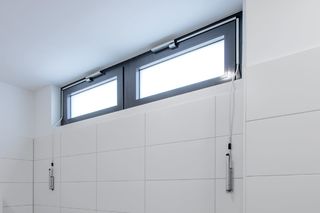

  • Convenient daily ventilation for rooms and staircases
  • Inward-opening rectangular windows with bottom-hung leaves
  • Installation on wooden (no Euro-groove), PVC or aluminium windows
  • Frame installation

Technical data

Scissors OL 90 N
Opening width (max.) 170 mm
Leaf width (min.) 380 mm
Leaf height (min.) 250 mm
Leaf weight (max.) 80 kg
Space needed (max.) 19 mm
Adjustable opening width (stroke reduction) Yes

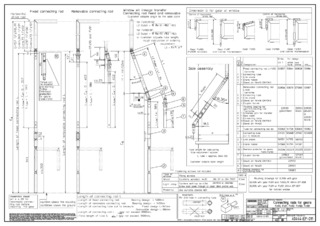

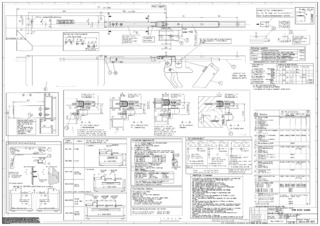

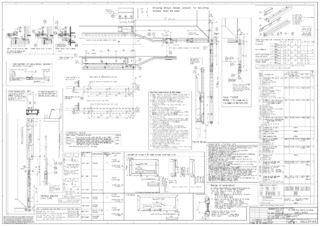

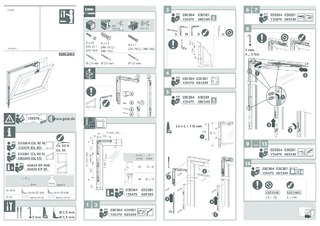

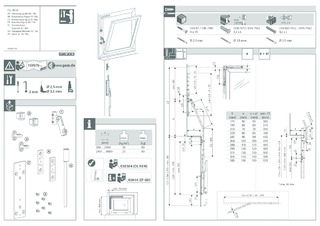

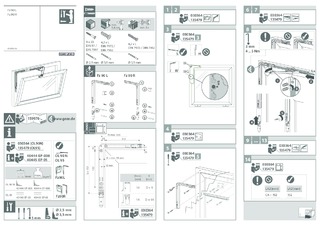

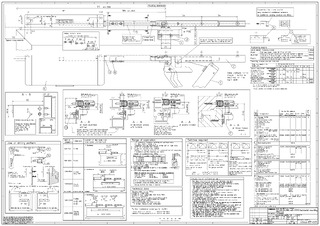

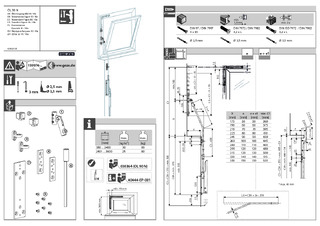

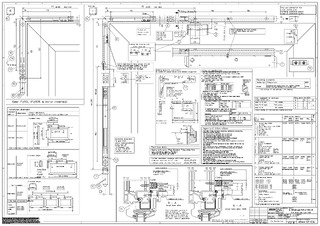

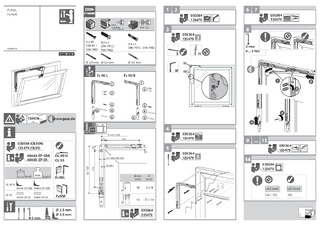

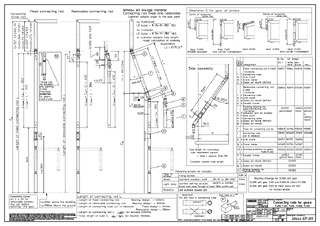

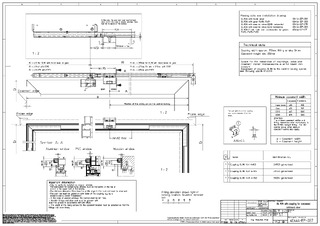

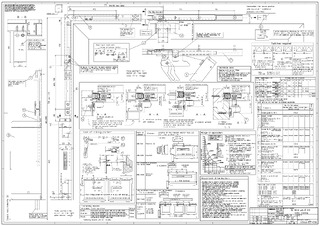

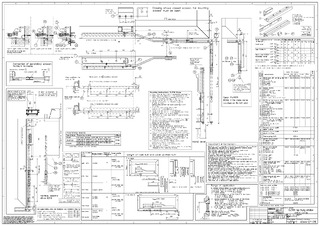

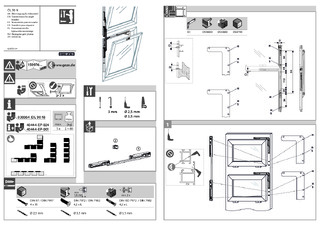

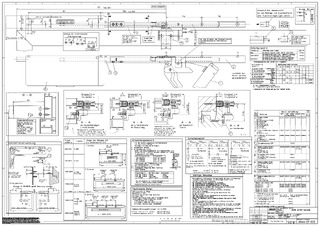

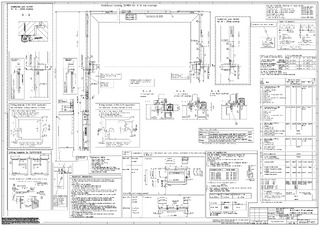

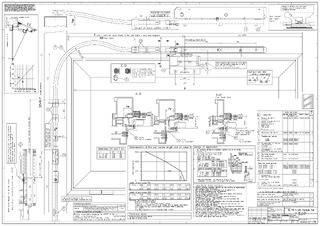

Downloads
