Boxer 1-leaf

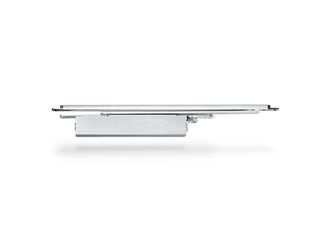

Boxer * Integrated door closer for single leaf doors with a leaf width of up to 1400 mm

  • Closing force with variable adjustment of EN2-4 or EN3-6
  • Can be used for right and left hand doors without conversion
  • Door closer is embedded in the door leaf and frame and fulfils the highest design demands
  • Integrated back check, slows down doors that are thrown open forcefully
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
Show more
  • All functions can be adjusted in the installed state
Contact us

Integrated door closer for single leaf doors with a leaf width of up to 1400 mm

Application Areas

  • Fire and smoke protection doors, proof of suitability for the door required
  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width, for door weight up to 180 kg
  • For door leaf thicknesses from 40 mm
  • Integrated installation

Product specifications

Boxer
Closing force in accordance with EN 1154 EN 2 - 6
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1100 mm
Leaf width (max.) 1400 mm
Leaf weight (max.) 180 kg
Type of installation concealed
Opening angle (max.) 120 °
Suitability for fire protection doors Yes
Free swing function No
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Latching action speed, adjustable No
Back check integrated Yes, hydraulically adjustable
Delayed closing integrated No
Integrated opening assistance No
Position of closing force adjustment Top
Visual closing force display No
Hold-open device Optional
Integrated smoke switch No
Integrated closing sequence control No
