TS 4000 EN 5-7

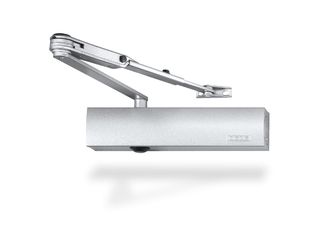

TS 4000 EN 5-7 with hold-open arm * Overhead door closer with link arm for single leaf doors with a leaf width of up to 1600 mm

TS 4000 NV with hold-open linkage Overhead door closer without connector box for door leaf installation and transom installation with hold-open linkage
  • Closing force with variable adjustment from EN5-7
  • Can be used for right and left hand doors without conversion
  • Mechanical hold-open unit through hold-open linkage with hold-open area 70°-150°
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
  • Integrated opening break function, slows down doors that are thrown open forcefully
Show more
  • Visual closing force display for easy control of the setting
  • All functions can be set from the front (except for latching action)
Contact us

Application Areas

  • Right and left single-action doors
  • Holds doors without smoke and fire protection requirements open
  • Single-action doors up to 1600 mm leaf width

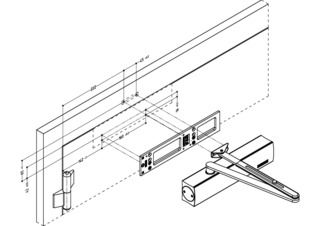

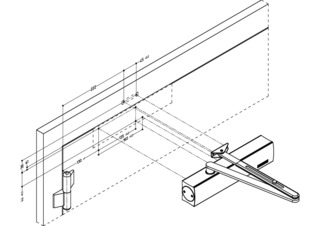

  • Door leaf installation hinge side and transom installation opposite hinge side
  • Door leaf installation opposite hinge side in parallel arm installation possible

Technical data

TS 4000 EN 5-7 with hold-open arm
Closing force in accordance with EN 1154 EN 5 - 7
Leaf width (max.) 1600 mm

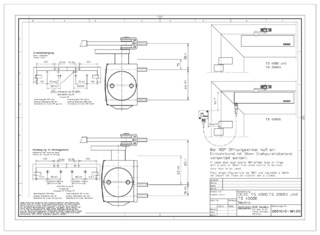

Type of installation Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side
Opening angle (max.) 180 °
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open function Mechanical
Hold-open range 50 ° - 170 °
