Free swing door closer 1-leaf

TS 5000 RFS 3-6 KB * Overhead door closer with guide rail for single leaf doors up to 1400 mm leaf width with electric free swing function and smoke switch control unit transom installation hinge side

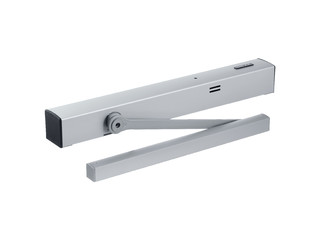

GEZE TS 5000 RFS transom installation complete package Door closer with integrated free swing function and hydraulic latching action
  • TS 5000 RFS KB door closer with electrohydraulic hold-open unit (230 V AC, transom installation hinge side)
  • Guide rail with free swing lever
  • Integrated power supply and smoke switch control unit, contamination indicator and adaption of the alarm threshold
  • For doors with leaf width up to 1,400 mm
  • Closing force adjustable EN 3-6
  • Can be used for right and left single-action doors without conversion
Show more
  • For fire and smoke protection doors (in case of door leaf installation with mounting plate)
  • Hydraulic latching action and closing speed can be adjusted
  • Visual closing force display
  • Option: concealed drip loop
  • All functions can be adjusted from the front
Contact us

Application Areas

  • For single-action doors, leaf width of up to 1400 mm
  • Can be used for right and left hand doors without conversion
  • For fire protection doors with corresponding suitability certificate

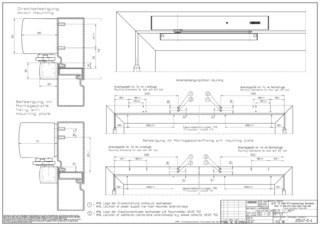

  • Transom installation hinge side
  • With comfort hold-open function to lock the door at the maximum opening angle
  • Barrier-free access in accordance with DIN 18040

Technical data

TS 5000 RFS 3-6 KB
Closing force in accordance with EN 1154 EN 3 - 6
Leaf width (max.) 1400 mm
Type of installation Transom installation hinge side
Opening angle (max.) 180 °
Input voltage 230 V AC
Suitability for fire protection doors Yes
Free swing area 85 ° - 160 °
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated No
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open function Electrically, for free swing function
Smoke switch integrated Yes
