Levolan 120 wood * Sliding door fitting for 120 kg wooden leafs for wall and ceiling installation

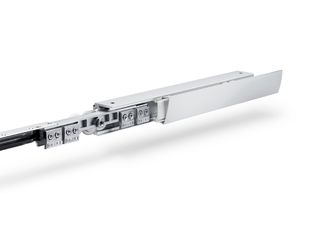

Levolan 120 roller sliding fitting Slim design with integrated fitting technology
  • Design sliding door fitting system for timber doors up to 120 kg in leaf weight
  • Slim design with integrated door fitting technology
  • Fully integrated in the track
  • The Levolan Smart fix installation system means the use of assembly tools is reduced to a minimum - for quick and convenient installation
  • Final assembly of the door fitting by simple clipping
  • With damping on one or both sides, for doors up to 120 kg leaf weight so that the door is stopped gently and pulled autonomously into the end position
Show more
  • Tested in accordance with DIN EN 1527 over 100,000 test cycles for durability
Contact us

Application Areas

  • For design-oriented interior sliding doors for living and office areas
  • For all single- and multiple-leaf sliding doors
  • Installation in front of the wall
  • For attachment on the wall and ceiling (directly and concealed) as well as for glass installation
  • Damped on one or both sides with Levolan 120 SoftStop
  • Smooth running with Levolan 120 SoftStop makes it particularly well suited for doors in living and office spaces

Technical data

Levolan 120 wood
Leaf material Wood, Metal
Leaf weight (max.) 120 kg
Number of leaves 1-leaf
Leaf width (min.) 640 mm
Leaf width (max.) 1440 mm
Leaf height (max.) 3500 mm
Leaf thickness to 40 mm
Track geometry straight
EN 1670 Corrosion resistance 3 (acc. to EN 1670: Class 0 = none defined, Class 1 = low, Class 2 medium, Class 3 = high, Class 4 = very high, Class 5 = extraordinary)
EN 1527 Continuous function 100,000 test cycles
Type of installation Wall, Ceiling, Concealed in the ceiling, Glass installation
DIN direction left / right
Manual operation Yes
Surface anodised
Colour EV1
