Slimdrive SCR RC2 * The perfect combination of design and certified safety
- Certified burglar resistance according to resistance class RC2
- The RC2 function is only available in the "Night" mode of operation, in which the door is locked with rod locking
- Equipped with a rod locking and reinforced profile components
- Very quiet running, low-wear direct current drive with a height of only 7 cm
- System consists of two drives that are controlled separately from each other
- 40 % more opening width than with linear sliding door drives
- Wide range of drive variants and equipment options possible
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
- Self-cleaning roller carriage reduces maintenance effort and costs
Application Areas
- Double leaf door systems
- Interior and exterior doors with maximum safety requirements
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Opening widths from 800 to 2500 mm possible
- Door leaf weights up to maximally 120 kg

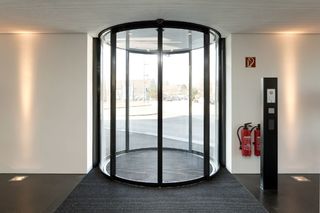

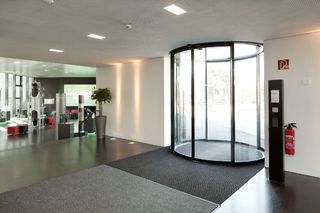

Installation situations in reference objects and videos
Technical data
Slimdrive SCR RC2 | |
Barrier-free | Yes |
Adjustable opening speed (ventilation) | Yes |
Adjustable closing speed | Yes |
Opening width 2-leaf | 800 mm - 2500 mm |
Clear passage height | 3000 mm |
Canopy height (min.) | 75 mm |
Leaf weight (max.) 1-leaf | 120 kg |
Leaf weight (max.) 2-leaf | 120 kg |
Radius (min.) | 1300 mm |
Moving leaf version | 10 mm LSG, Special glass on request |
Side elements version | 10 mm LSG, Special glass on request |
Surface | Powder-coated according to RAL, Anodised light alloy E6/EV1, colour anodised according to sample, special coating on request |
Version of roof structure | optical sheet metal covering, waterproof roof with waterspout |
Illumination | with roof variant |
Floor covering | Entrance mat, Entrance mat according to customer wishes |
Hot-air curtain system | possible, depends on the ceiling construction |
Special functions on request | Yes |
Operation | Programme switch DPS, Programme switch TPS, Control via building management system |
Standard conformity | DIN 18650, EN 16005 |
Downloads
LABELLING OBLIGATION: © Dirk Wilhelmy / GEZE GmbH
LABELLING OBLIGATION: © Dirk Wilhelmy / GEZE GmbH
LABELLING OBLIGATION: © Dirk Wilhelmy / GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
