Panic locks for tubular framed doors

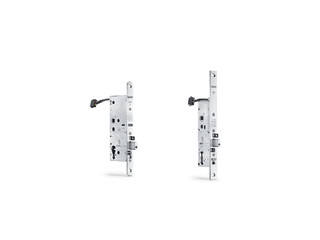

IQ lock EM DL * Electro-mechanical lever lock for the combination with access control systems on double leaf doors

IQ Lock EM DL
  • Mechanical self-locking ensures automatic crossbar projection every time the door is closed
  • Unlocking of active leaf by activating passive leaf (full panic function)
  • Divided cross latch prevents the bolt from locking even under side-load
  • External door handle is decoupled from the lock mechanism
  • Integrated feedback contacts make complete monitoring of the door possible
  • Optional sabotage monitoring or cylinder contact
Show more
  • Small rear backset and small dimensions of the lock case
Contact us

Application Areas

  • Double leaf emergency exit and panic doors
  • Doors along escape and rescue routes
  • Fire and smoke protection doors
  • Access control systems

Technical data

IQ lock EM DL
DIN direction left / right
Service temperature -10 - 50 °C
Supply voltage 12 V DC, 24 V DC, 48 V DC
Panic function / mechanical self-locking Yes
Divided cross latch (3 mm gap between latch and bolt) Yes
Outside handle, can be electrically engaged Yes
Feedback contacts for lock states Yes
Optional sabotage monitoring or cylinder contact Yes
Current consumption N/A, N/A
Contact rating 30 V / 500 mA
Resistant to forcing 10000 N
Connector cable length 15 m
