TS 5000 E-ISM/S

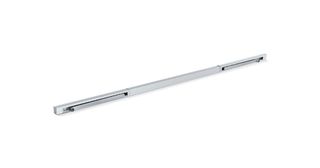

E-ISM/S guide rail TS 5000 * continuous, with integrated closing sequence control, electric hold-open device on the passive leaf and levers

ISM guide rail TS 5000 extra length
  • Electrical hold-open device on the passive leaf with hold-open range 80°-130°
  • Retention force of the electromechanical hold-open device can be variably adjusted
  • Operating voltage 24 V DC
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Vandalism protection through flexible Bowden cable
  • Horizontally adjustable in the installation position by 4 mm through elongated holes
Show more
  • With screwed sliding block
Contact us

continuous, with integrated closing sequence control, electric hold-open device on the passive leaf and levers

Application Areas

  • Double leaf doors with closing sequence control
  • Hold-open systems with integrated hold-open device on passive leaf
  • For combination with a free swing door closer or hold-open magnet on the active leaf
  • Installation on hinge side
  • Right and left single-action doors
  • Symmetrical and asymmetrical division of door possible
  • Up to 2800 mm hinge clearance
  • Minimum hinge clearance 1300 mm, minimum width of passive leaf 400 mm

Technical data

E-ISM/S guide rail TS 5000
Input voltage 24 V DC
Electrical power consumption 2.4 W
Duty rating 100 %
Residual ripple 20 %
IP rating IP43
Minimum hinge clearance 1300 mm
Minimum passive leaf width 400 mm
Standard conformity EN 1155, EN 1158
Length 2630 mm
Width 40 mm
Height 30 mm
opening restrictor upgradable Yes
Hold-open function Electrical
Hold-open device on the active leaf / passive leaf Optional / Yes
Hold-open device can be overridden Yes
Hold-open range 130 ° - 80 °
Closing sequence control integrated Yes
Height correction possible Yes
Flexible opening restrictor Yes
