Slimdrive EMD-F/R

Slimdrive EMD-F/R * Electromechanical swing door drive for single leaf fire and smoke protection doors with integrated smoke switch

Slimdrive EMD-F/R
  • Closing force with variable adjustment of EN 4-6
  • Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
  • Opening and closing speed can be individually adjusted
  • Mechanical latching action when operated without current, and electrical latching action in regular operation, which accelerates the door shortly before the closed position
  • Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
  • Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
Show more
  • Obstacle detection detects an object through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening position
  • Push & Go function triggers the automatic drive following light manual pressure on the door leaf
  • Drive can be used with roller guide rail or link arm
  • Servo function for motorized support when manually opening the door
Contact us

Application Areas

  • Fire and smoke protection doors
  • Single-action, single leaf, right and left closing doors
  • Single-action doors up to 1400 mm leaf width or 230 kg weight
  • Minimum leaf width 750 mm
  • Interior and exterior doors with high access frequency
  • Transom installation hinge and opposite hinge side

Technical data

Slimdrive EMD-F/R
Height 70 mm
Depth 121 mm
Leaf weight (max.) 1-leaf 230 kg
Leaf width (min.-max.) 1400 mm
Opening angle (max.) 130 °
Spring pre-load EN4 - EN6
DIN left Yes
DIN right Yes
Transom installation opposite hinge side with link arm Yes
Transom installation hinge side with guide rail Yes
Mechanical latching action Yes
Electrical latching action Yes
Disconnection from mains Main switch in the drive
Operating voltage 230 V
Power rating 230 W
Power supply for external consumers (24 V DC) 1000 mA
Service temperature -15 - 50 °C
IP rating IP20
Mode of operation Off, Automatic, Permanently open, Shop closing, Night
Type of function Automatic swing door systems
Automatic function Yes
Low-energy function Yes
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Parameter setting GEZEconnects (PC + Bluetooth), Programme switch DPS
Standard conformity DIN 18263-4, EN 16005
Suitability for fire protection doors Yes
Smoke switch integrated Yes

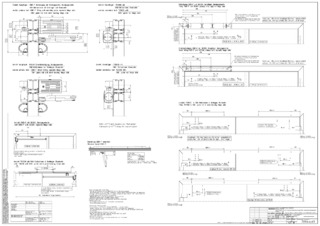

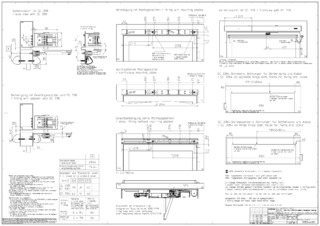

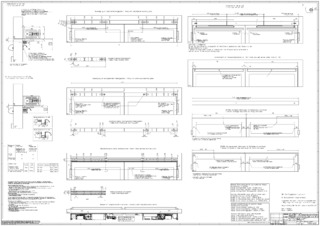

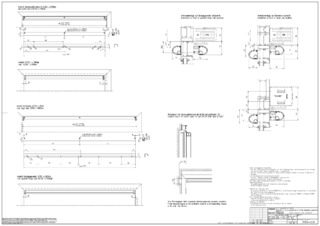

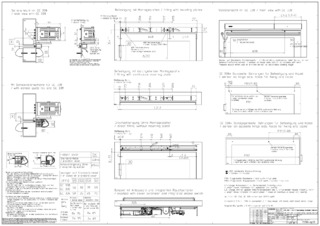

Downloads
