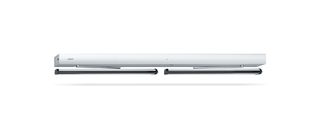

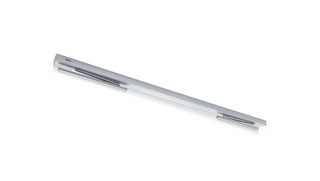

Powerturn F/R-IS * Electromechanical swing door system for double leaf fire and smoke protection doors with closing sequence control and integrated smoke switch
- Smart swing function for easy manual door opening
- Closing force of EN4-7 with variable adjustment
- Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
- Opening and closing speed can be individually adjusted
- Mechanical latching action when operated without current, and electrical latching action in regular operation, which accelerates the door shortly before the closed position
- Mechanical and electrical closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
- Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
- Obstacle detection detects an object through contact and stops the opening or closing process
- Automatic reversing detects an obstacle and returns to the opening position
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf
- Drive can be used with roller guide rail or link arm
- Servo function for motorized support when manually opening the door
- Optional radio reception board for wireless activation by radio transmitter
Application Areas
- Fire and smoke protection doors
- Right and left double leaf single-action doors
- Single-action doors up to 3200 mm hinge clearance, 1600 mm leaf width and 600 kg weight
- Minimum hinge clearance 1657 mm
- Interior and exterior doors with high access frequency
- Transom installation hinge and opposite hinge side
Installation situations in reference objects and videos
Technical data
Powerturn F/R-IS | |
Height | 70 mm |
Width | 920 mm |
Depth | 130 mm |
Leaf weight (max.) 1-leaf | 600 kg |
Distance centre door hinge-drive axis (min.-max.) 2-leaf, link arm | 1657 mm - 3200 mm |
Distance centre door hinge-drive axis (min.-max.) 2-leaf, roller guide rail | 1657 mm - 2800 mm |
Leaf width (min.-max.) | 920 mm - 1600 mm |
Reveal depth (max.) | 300 mm |
Drive type | Electromechanical |
Opening angle (max.) | 136 ° |
Spring pre-load | EN4 - EN7 |
DIN left | Yes |
DIN right | Yes |
Transom installation opposite hinge side with link arm | Yes |
Transom installation opposite hinge side with roller guide rail | Yes |
Transom installation hinge side with roller guide rail | Yes |
Mechanical latching action | Yes |
Electrical latching action | Yes |
Electrical closing sequence control | Yes |
Mechanical closing sequence control | Yes |
Disconnection from mains | Main switch in the drive |
Activation delay (max.) | 10 s |
Operating voltage | 230 V |
Power rating | 200 W |
Power supply for external consumers (24 V DC) | 1200 mA |
Service temperature | -15 - 50 °C |
IP rating | IP30 |
Mode of operation | Automatic, Night, Permanently open, Shop closing, Off |
Type of function | Fully automatic |
Automatic function | Yes |
Low-energy function | Yes |
function smart swing | Yes |
Servo function | Yes |
Key function | Yes |
Vestibule function | Yes |
Obstacle detection | Yes |
Automatic reversing | Yes |
Push & Go | adjustable |
Operation | GEZEconnects (PC + Bluetooth), Service terminal ST 220, Programme switch DPS |
Parameter setting | GEZEconnects (PC + Bluetooth), Service terminal ST 220 |
Standard conformity | DIN 18263-4, DIN 18650, EN 1158, EN 16005 |
Suitability for fire protection doors | Yes |
Smoke switch integrated | Yes |
Use on fire and smoke protection doors (F-variant) | Yes |
